The series of bitmap drawings below shows the series of wheelchair turning radius drawings we have seen in smallest-to-largest order followed by an overlay composite bitmap drawing that compares all of the turning radiuses directly to each other:

Later Power Wheelchair Turning Radius

Manual Wheelchair Turning Radius

Later Rehab Wheelchair Turning Radius

Earlier Power / Rehab Wheelchair Turning Radius

Earlier Scooter Wheelchair Turning Radius

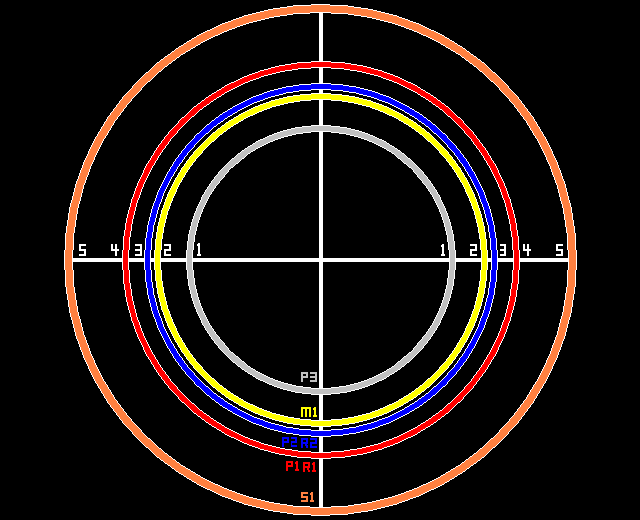

All Turning Radiuses -- Color Coded And Labeled Smallest To Largest

1 -- Later Power Wheelchairs -- Light Grey -- Labeled "P3"
2 -- Manual Wheelchairs -- Yellow -- Labeled "M1"
3 -- Later Rehab Wheelchairs -- Blue -- Labeled "P2 / R2"
4 -- Earlier Power / Rehab Wheelchairs -- Red -- Labeled "P1"
5 -- Earlier Scooter Wheelchairs -- Orange -- Labeled "S1"
